Click pictures for a larger view.

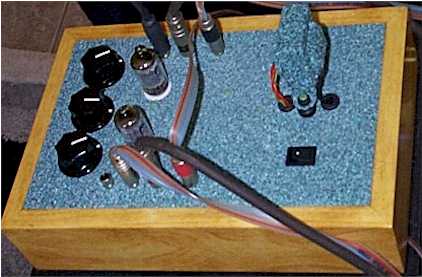

Cables, Varathane and lots of coats of paint. The screw heads are painted to compliment the speckle paint.

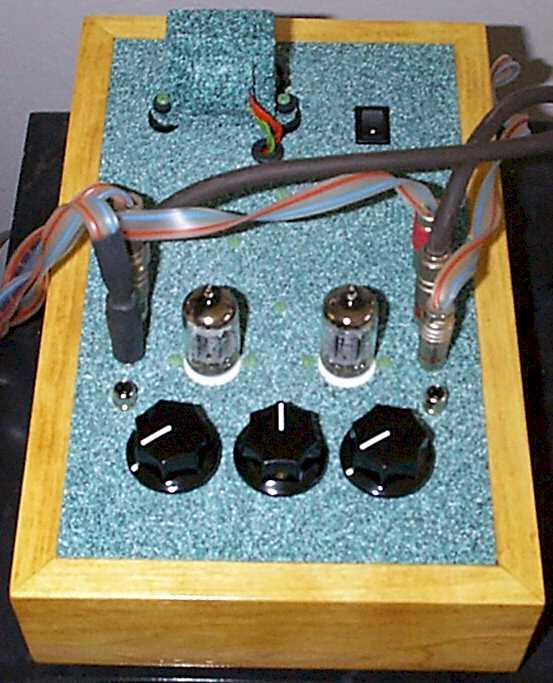

You can sort of see the stack of grommets under the transformer.

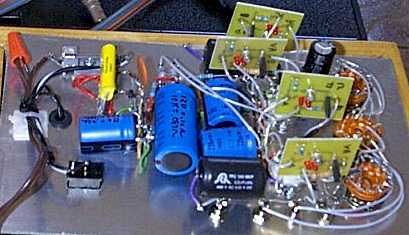

This shows the Pseudo Dual mono supply, B+ snubber and the Bottlehead electronics
upgrades.
I routed the 115V wiring different than what was in the instruction manual.
The 115V hot first goes to the fuse, then to the switch.
The 115V cold goes directly to the transformer.
Neither can I, it was a trick question. This picture is as big as it gets. Don't bother clicking on it.

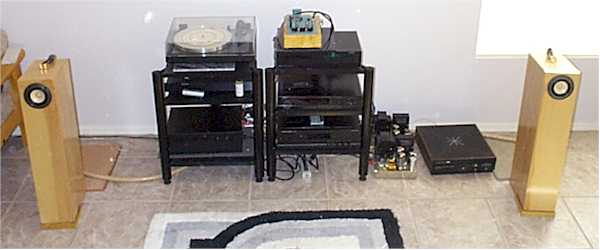

The Dynaco MK IIIs are to the right waiting their next upgrade. The
AN Kit 4 is on the bottom of the turntable rack.
The pieces of carpet behind the speakers tame the highs from the back
loaded horns.
