Version A: 1 foot of insulated wire and some heatshrink or insulating tape.

Version B: 1/2 foot of insulated wire (or less), a pair of 2K 1/4W metal film resistors and some heatshrink or insulating tape.

That's it!

Pick a piece of music with bass and a vocal. Play it twice listening the pitch of the bass and the clarity of the vocal. This is your reference. Write down the volume setting you used when you listened.

1. The AC voltage from the black output terminal and the RCA ground or terminal 14 ground. This should measure <1.0 V AC.  Nearby fluorescent lights will mess up this measurement.

2. The DC voltage from the black output terminal and the RCA ground or terminal 14 ground. This should measure much less than 0.2 V DC.

3. Turn the power off. Wait 10 seconds. Don't unplug anything yet. Measure the ohms from the black output terminal and the RCA ground (>1 meg). If you don't measure >1 meg, unplug the speakers and try again.

4. Unplug the Paramour from everything, pull the tubes and wait for B+ to discharge to less than 9V.
Put the tubes someplace safe and arrange them so you can get the same tubes back into the same amplifier (this will make the listening test comparison a fair as possible.)

4.1 (Added  7-Oct-01) Measure the ohms from terminal 15 (red lead) to terminal 14 (black lead). Write the number down. There is a capacitor on terminal 15 that will cause this reading to move all over the map. It should read greater than 10 k and less than 300 k. Give it 30 seconds to settle before writing the number down.

5. Disconnect the transformer connection to terminal 14 and move it to terminal 11. Don't pull on the transformer lead to make it fit, that is a good way to ruin your output transformer. If you break your output transformer, you have to buy a replacement. This is an unauthorized mod to the Paramour. Neither Doc nor I warrant this mod.

If you need to make the lead longer, add some wire and put two layers of heat shrink over the splice. Don't heat up any of the capacitors when shrinking the heat shrink. Shrink the heat shrink before you solder to terminal 11.

6. Version 6A is safer than version 6B. If you have a powered subwoofer running off the speaker outputs, you may want to consider version 6B if you get hum. If you don't have a powered sub attached to the speaker outputs, do version 6A.

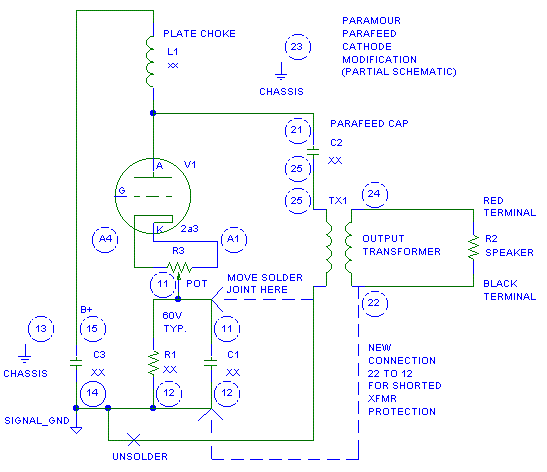

Run a wire from terminal 22 to terminal 12. With a wire from 22 to 12 if the transformer fails, the cathode of the tube will be shorted to ground instead of 60V appearing on the speaker terminals.

Leaving the 2K resistor leads fairly long, connect a 2K resistor from terminal 22 to terminal 12. Sleeve the leads if you have sleeving laying around. Note: it is OK to solder the resistor to the resistor lead going to terminal 12. Make sure the resistor is 1/4 inch from everything. This is your OH SHIT resistor. If it smokes, the output transformer has a dangerous failure in it and you hopeful will smell the resistor cook as a warning.

7. Clean all your solder joints with a Qtip (tm) or industrial cotton swab. Remove any cotton fibers from the terminals. Don't use any chlorinated solvents to do this. Chlorine kills aluminum capacitors. Do not spray solvent on the terminals! Put the solvent on  a Qtip (tm) and use it to clean the terminals.

8. Measure 1.0K to 1.4K from terminal 14 to terminal 11.

8.1 (Added  7-Oct-01) Measure the ohms from terminal 15 (red lead) to terminal 14 (black lead). Write the number down. There is a capacitor on terminal 15 that will cause this reading to move all over the map. It should still read greater than 10 k and less than 300 k. Give it 30 seconds to settle before writing the number down. Compare this number to the one you wrote down in step 4.1. It should be close (+/- 30 %) to what you read before.

If this reading is less than 2 k, you connected 21 to terminal 12 instead of connecting 22 to terminal 12.

9. Measure <1 ohm from terminal 14 to terminal 12.

10.
If you did version 6A, measure <1 ohm from terminal 14 to the black speaker terminal.
If you did version 6B, measure 1.9K to 2.1K from terminal 14 to the black speaker terminal.

The black lead of your meter to terminal 14 and
the red meter lead to the black speaker terminal .

With the power on and no input signal, measure and record:

11. The AC voltage from the black output terminal and the RCA ground or terminal 14 ground. This should measure 0.000V to 0.5V greater than what you read in step 1.

Remember, nearby fluorescent lights and noise sources will mess up this measurement.

12. The DC voltage from the black output terminal and the RCA ground or terminal 14 ground. This should measure zero to no more than what you read in step 2.

If you fail steps 11 or 12. Check your work. Step 11 is easy to fail because of noise pick up. Step 12 is critical to pass. Step 12 verifies your transformer insulation.

If the black speaker terminal measures about 60V, the wire you added from terminal 22 probably is attached to terminal 11 (wrong) instead of terminal 12 (right).

13. Breath for a second or two.

14. Turn the unit off, wait for the capacitors to bleed down and move your DVM to be across terminal 14 to A4. (Black to 14) Turn the unit back on and verify that A4 is about 60 V DC. Once you verify the voltage, turn the amp back off, wait for the voltages to bleed down and remove the DVM from the amp.

15. Put the amp back in your system and go listen at the same volume that you did before with the same CD. The midrange gain of the amp should not have changed!

We returned the AC current from the output transformer to the cathode of the 2A3. This helps to make the sound of the cathode capacitor disappear! I've got the scope photos below to show that this actually works.  Now all the cathode capacitor has to filter is changes in the bias current, not changes from driving the speaker. We still need a capacitor on the cathode for bias stability and to handle tube parasitics, but now the sound of the capacitor is not a big issue.

Undamaged magnet wire that is wound on a transformer bobbin can easily support the 60V DC from cathode to ground. The magnet wire in the output transformer is protected from abuse if the transformer has not been scratched up, nicked up or dropped. If the magnet wire is nicked up, scraped or dented, the insulation no longer reliable and we can't trust 60V across it.

If your output transformer's coil is dented or nicked up, don't do this mod!!!

Do not even think about attaching the stock transformer to the plate of the 2A3 and putting the capacitor in the ground leg!

The stock transformer does not have supplemental insulation nor creepage to block the high voltage.

Attaching the stock transformer to the plate of the 2A3 is a way to get seriously hurt! The stock transformer cannot support B+ for more than a short period of time! Do not earn a Darwin award by doing this "hot transformer" version of parafeeding!

I am hearing deeper cleaner bass with just one amplifier modified. This midrange is smoother and occurs with an ease I did not know I was missing until I went to VSAC and heard the Paraglow 2A3 amps.

Unfortunately,  I was too tired to do the other channel right (on the 16th.)

The bass was clean and deep. The midrange was effortless. Most of all, the stereo image improved!
Wow! These improvements are definitely not a case of proud poppa syndrome. This change sounds great!

Thanks to Anand for being my guinea pig and finding a significant typo!

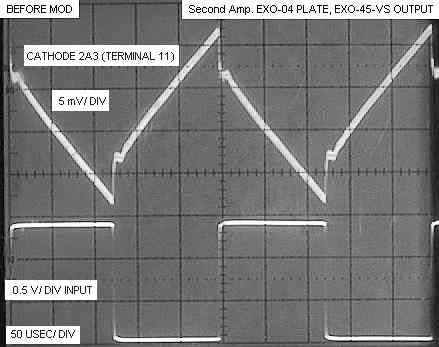

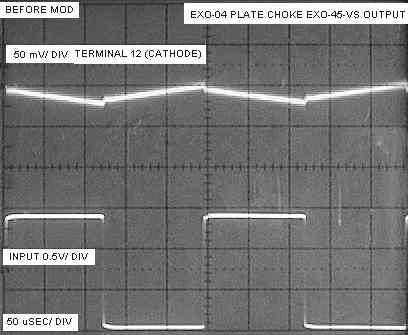

This is what the voltage on A4 (terminal 11) looks like before the modification with a 40 Hz input squarewave.
My squarewave generator has a DC offset so I added a capacitor in series with it to remove the DC offset. That is why the input square wave is sloped.
Note: A 0.33 uF AXON capacitor is driving grid of 2A3 with 130K ohms to ground from the grid of the 2A3.

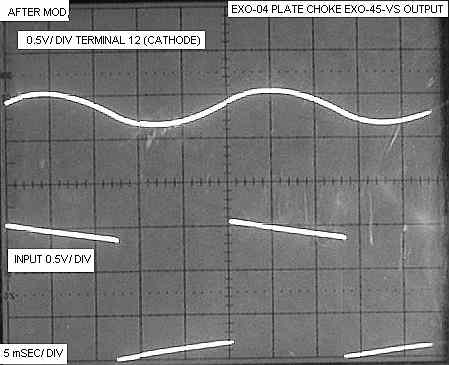

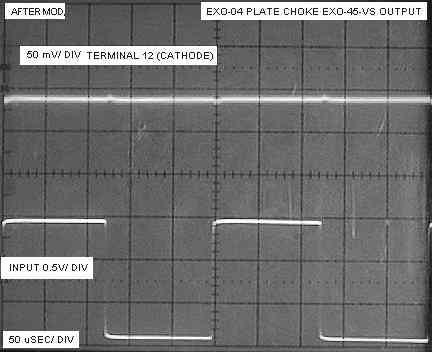

Notice that not only did the amplitude on the cathode of the 2A3 decrease, almost all of the high frequency modulation (bad) on the cathode is gone. (Note: The "after" picture is a composite of two pictures pasted together to get one complete sweep.)

Now lets drive it with about 4 kHz. I'll turn the trace gain up a factor of 10 on the cathode trace.

Wow! I suspect that the little bumps in the cathode trace in the after picture are from winding to winding capacitance in the output transformer. The winding to winding capacitance does not get circulated through the cathode capacitor.

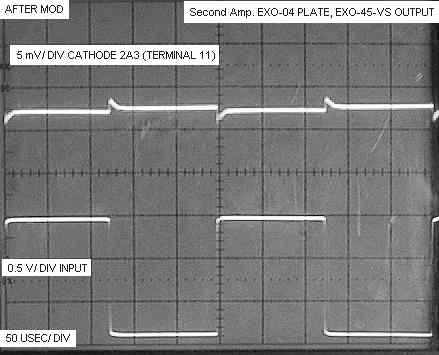

I repeated the above 4 kHz pictures on my second Paramour, but this time used a 1:1 probe on the 2A3 cathode so I could display 5 mV/ div.

This is simply awesome that for once, something that sounds better actually looks better when checking it using a scope.

If I get ambitious, I'll add some Pspice pictures. I think the scope photo's of the cathode voltage tell the technical part of the story quite well.
