Many times a tube enthusiast needs a 550V capacitor or higher but only has a 500V part available. I am offering ideas on how to do this below. Why would you want to stack unequal capacitors?

1. To get the maximum effective capacitance in the power supply when you are using a decorative bottom (ground) capacitor.
2. To add a little voltage margin to a special capacitor ( like a low voltage Cerafine (TM) on top of a high voltage Cerafine (TM) .)

These high voltages can kill you. Wear rubber soled shoes to help keep any accidental shocks from passing through your body. Make sure the unit is unplugged and the capacitors are completely discharge before your body or tools come in contact with the equipment you are working on.

Capacitors can vent (commonly know as exploding). Wear safety glasses when working with electronics, especially when working with capacitors. Wear two pairs the first time voltage is applied to a capacitor after soldering. If you care about what your face looks like, wear a complete face shield. Most of my friends have a scar or two somewhere on their body from working on electronics. I often put a nonflammable plastic box over my work the first time I apply power.

High energy capacitor banks (even low voltage ones) can make wire, necklaces, rings and watches glow white hot and if the conditions are right, the metal seems to explode. Do not have any metal on your body except possibly for your belt buckle (its hard to run for the fire extinguisher when your pants are falling down) and face shield (safety glasses.)

I prefer to wear long cotton pants. Solder drips burn through polyester and hurt for weeks. I don't wear either of my two wool pants when soldering because they cost too much to be ruined with a burn mark.

Work with a friend who knows CPR and knows how to pull the plug from the wall if you forgot to do that first.

Work with a full fire extinguisher in view. Do not put the fires extinguisher where you would have to reach across equipment to get to it.

The case of a capacitor can have voltage on it. Check it with a working voltmeter on both AC and DC before attempting to touch it.

Make your own safety assessment. Your design and craftsmanship must be safe for both you and those who enter your house.

Both old and new parts can be defective. Test them before installing them.

One atom of chlorine in an aluminum capacitor can ruin it. Chlorine is a catalyst that attacks the plates of the capacitor. Do not use chlorinated solvents on aluminum capacitors. The end seal on the capacitor reduces the risk of contamination, it does not eliminate the risk.

Aluminum capacitors dry out and their rated voltage drops with age. Reforming a capacitor can help fix the rated voltage drop, but it won't fix the life issue. Aluminum capacitors are wet inside. Drying out means just what it sounds like. Do you really want to spend your hard earned free time installing capacitors that will have to be replaced soon? Buy newer aluminum capacitors.

Make your own risk assessment. Read the application notes for the parts you are using. Generally, greater than 1/2 inch diameter aluminum caps 5 years old may be OK. Less than 1/2 inch diameter caps 5 years old I would not fool with. In my opinion, any aluminum cap over 10 years old should not be installed as a replacement part. In my opinion, there won't be enough life left in it to justify my labor and time. Look in the Digikey catalog at the life expectancy for the aluminum caps that are being sold. 2000 hrs at 85 to 105C is a typical. Keep in mind that one year is 8760 hours and the aluminum capacitor is drying out even when it is not being used. It used to be thought that the life doubles every 10 C cooler you run the capacitor. Current data from a vendor (I can't find their web page back) says that the curve is not that generous.

Watch out for tantalum capacitors. When they vent, they can spew molten tantalum!

In a capacitor,

V = Q/ C  (voltage equals coulombs over farads.)

1 coulomb = 1 amp for 1 second.

C effective        = ( 1/ C1 + 1/ C2 . . . + 1/ Cn) for series capacitors.
ESR effective    = ESR1 + ESR2 . . . + ESRn for series capacitors at mid frequencies.
Low frequencies are those frequencies where all of the capacitor's impedances are dominated by their capacitance.
Mid frequencies are those frequencies where all of the capacitor's impedances are dominated by their ESR (Equivalent Series Resistance.)
High frequencies are those frequencies where any of the capacitor's impedances are dominated by their ESL (Equivalent Series Inductance.)

C effective        = C1 + C2 . . . + Cn for parallel capacitors
ESR effective    = 1/ (1/ ESR_1 + 1/ ESR_2 . . . + 1/ ESR_n) for series capacitors at mid frequencies.

Also, keep in mind when stacking capacitors in series, the case of all the capacitors but the one with its case attached to ground will have HIGH VOLTAGE on it! Mark and insulate all of the hot case parts accordingly. Do not put hot case parts on the outside of a unit. Hot case parts always go on the inside of a unit and are marked so the next person knows that the case is hot. I recommend insulating finger guards over hot case capacitors even when they are inside a unit. You never know when a finger or wire will slip where it does not belong.

When you add non equal capacitors, you need to either keep the maximum ALLOWED charge close to constant in each capacitor or heavily derate the voltage on one or all of the capacitors to survive power up and faults.  Again, by charge I am talking about:

coulombs = farads * volts = amps * seconds.
Q = C * V = I * T
( This actually should be the integral of current over time: which is the same as the average current times the seconds it was averaged over. )

1. The nominal C times rated V be the same on each capacitor because at power up or during an arc, nominal C times actual used V (charge) will be the same in each capacitor.  OR
2. The nominal C times used V in each capacitor be equal to the smallest C time V rated for the series string of capacitors.

The balancing resistors also need to be picked hold the DC voltage on each capacitor at a point that keeps the charge in each capacitor is the same. The current flow through the balancing resistors should be 10 times the leakage current of the leakiest capacitor in the stack. Some people use 5 times, some people use 20 times the actual amount is a risk assessment you make during the design phase.

Unless each capacitor can take full voltage and full surge current, expect the entire capacitor string to fail if any one of the capacitors in the string fail short.

1. You have a 30 uF rated at 500V which equals 15 mC of charge storage. You are using the capacitor bank at 550V worst case peak during the turn on surge and you decide that you want a 600V peak rated capacitor. Lets add a 100V capacitor on top of the 500V capacitor to get the 600V rating.

The 100V capacitor value should be approximately 15 mC/ 100V = 150 uF.

The actual total effective series capacitance will be 1/( 1/ 30 uF + 1/ 150 uF) = 25 uF.

Lets say you want a 2 mA bleeder/balancing resistor.

* The bleeder on the 500V cap will be 500V/ 2 mA = 250K, 500V^2/ 250K = 1W (use a 250K 2W or two 125K 1W in series)
* The bleeder on the 100V cap will be 100V/ 2 mA = 50K, 100V^2/ 50K = 0.2W (Use a 51k, 0.5W)

2. You have a 30 uF rated at 500V and a 220 uF rated at 100V in hand.

30 uF * 500V = 15 mC.
220 uF * 100V = 22 mC.

Since the maximum charge is constant, pick the lowest charge of the available capacitors: 15 mC.

The voltage that gives 15 mC on 220 uF = 15 mC/ 220 uF = 68V  (V = Q/ C)

So the maximum allowed total voltage on the 220 uF stacked on the 30 uF is 500V + 68V = 568V. If your peak voltage actually is less than 568V worst case, go a head and use the 220 uF 100V on top of the 30 uF 500V. If your peak voltage is higher (but less than 600V) you'll need to buy the 150 uF 100V part.

If you use a bit of derating (say 90% at worst case high line, light load) your peak voltage should be 568V * 0.90 = 511V for the 220 uF/ 30 uF set up.

Lets use a 2 mA bleeder again:

* The bleeder on the 500V cap will be 500V/ 2 mA = 250K, 500V^2/ 250K = 1W (use a 250K 2W or two 125K 1W in series)
* The bleeder on the 68V cap will be 68V/ 2 mA = 34K, 68V^2/ 34K = 0.136W (use a 34k 1/4W)

Don't let the bleeder resistors touch the side of the capacitor. They will heat the capacitor up and shorten its life.

If this is confusing, stick to stacking identical capacitors with identical bleeders. Don't feel bad about it either. I've worked for engineers that get this severely messed up.

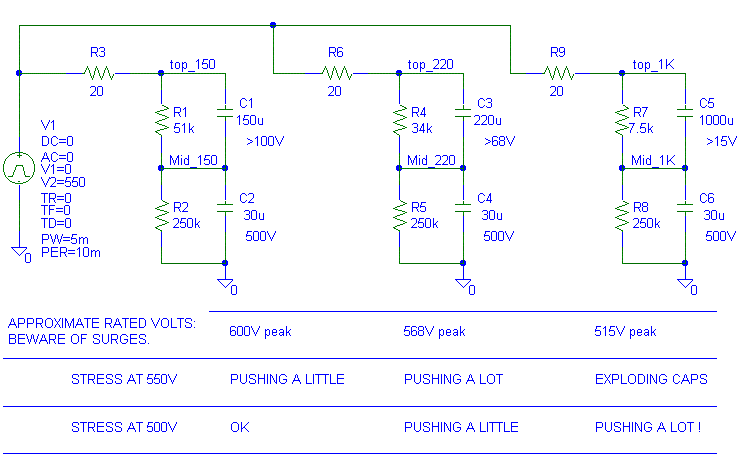

Here is the Pspice model. For illustration purposes, I am stressing a third capacitor setup that should only see 515V worst case but will see more than rated!

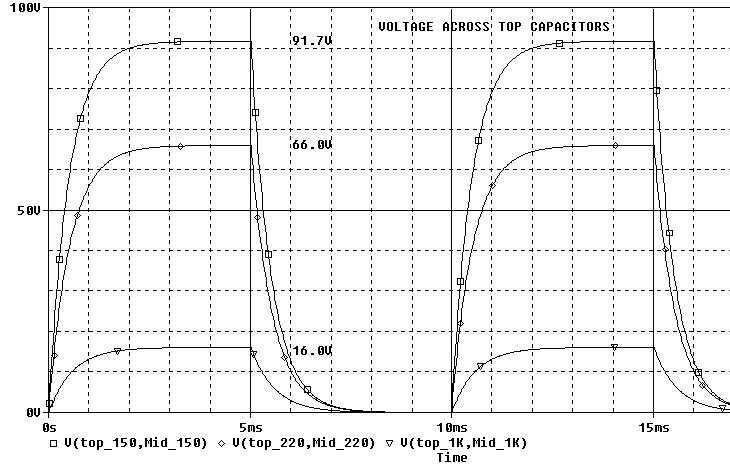

Below is what the voltage across the top capacitors look like.
Notice that the 1000 uF 15V capacitor sees 16/15 = 107% of rated voltage.

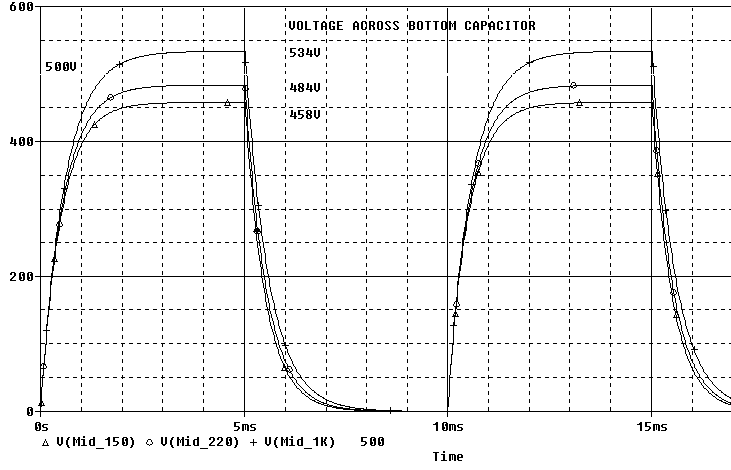

Below is what the bottom capacitors look like:
Notice that the third setup with the 1000 uF sees 534/500V = 107% of rated voltage.

If the bleeders are not set up correctly, you'll also get imbalanced voltage stress.

Don't forget, no ungrounded metal exposed to fingers!

Use this information at your own risk.
