| TYPE |
(Click for full-size) |
RMS RATING |
CONFIGURATION |
YEARS (APPROX.) |
COST NEW |
COMMENTS |
TUBES
(tech notes) |
| 99(A) |
/Amps,%20Integrated/Scott_99A%20tn.jpg) |
9-watts |
Mono Integrated
"Transcription" Amplifier |
1953-1954 |
$99 |
The product that put Scott on the "hi-fi" map and into living
rooms.
1st "slim-line" design,
innovative "packaged engineering" used "split/horizontal"
chassis
Featured separate Turnover/Rolloff and phono level controls
15 lbs.
|
6 tubes:
(2) 12AX7
(1) 12AU7
(2) 6V6GTA
(1) 5Y3 |

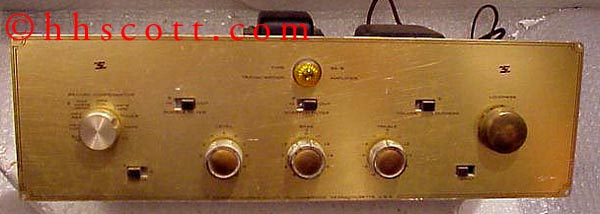

| 99-B |
/Amps,%20Integrated/Scott_99B%20tn.jpg) |
22-watts |
Mono Integrated "Transcription" Amplifier |
1954-1956 |
$99 |
Improvements
included:
"Staggered" control layout, simplified record EQ controls
Up-rated Output and rectification
|
6 tubes:
(3) 12AX7
(2) 6L6GB
(1) 5U4GA
|
| 99-C |
Need
Photo |
22-watts |
Mono Integrated "Transcription" Amplifier |
1957-1958 |
$99 |
See Above, used wide
"C" case/chassis
|
6 tubes:
(3) 12AX7
(2) 6L6GB
(1) 5U4GA
|
| 99D |
/Amps,%20Integrated/Scott_99D%20tn.jpg) |
22-watts |
Mono Integrated Amp |
1959-1962 |
$99 |
Added front panel speaker selector switch, replacing phono-level pot
used wide
"C" case/chassis
|
6
tubes:
(3) 12AX7
(2) 6L6GB
(1) 5U4GA
|

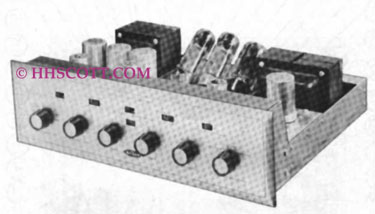

| 209 |
/Amps,%20Integrated/Scott_209_tn.JPG) |
30-watts |
Mono Integrated Amp |
1958-1959 |
$140 |
EL-34-based version of
the Type 99
similar to the 210E/F but w/o DYNAURAL Noise Supressor
featured front panel speaker selector switch
used "canted-tube" wide "C" chassis
|
7 tubes:
(3) 12AX7
(1) 12AU7
(2) EL34 (6CA7)
(1) 5U4GA |
| 210(A) |
/Amps,%20Integrated/Scott_210-A_tn.JPG) |
18-watts |
Mono Integrated
"DYNAURAL Laboratory" Amplifier |
1947-1950 |
$220 |
Considered to be the 1st
hi-fi Integrated Amp (it combined the 121-A
and 220-A on a common chassis)
features:
"flush" faceplate,
distinctive "rose-colored" anodized chassis,
(2) hard-wired inputs (phono and line-level)
distinctive HSH logo on cast transformer end-caps and knob centers
|
10 tubes:
(2) 12SL7
(1) 6J5
(2) 6SG7
(1) 6SQ7
(1) 6SN7GT
(2) 6L6GT
(1) 5V4GT |
| 210-B |
/Amps,%20Integrated/Scott_210B%20tn.jpg) |
18-watts |
Mono Integrated
"DYNAURAL Laboratory" Amplifier |
1950-1954 |
$185 |
Minor revisions to
210(A)
"Floating" faceplate introduced
(2) hard-wired inputs (phono and line-level)
distinctive HSH logo on cast transformer end-caps and knob centers
See Phil's Rebuild for detailed
restoration & technical info
|
10 tubes:
(2) 12SL7
(1) 6J5
(2) 6SG7
(1) 6SQ7
(1) 6SN7GT
(2) 6L6GT
(1) 5V4GT |
| 210-C/D |
Need
Photo |
18-watts |
Mono Integrated
"DYNAURAL Laboratory" Amplifier |
1954-1955 |
$170 |
Major Packaging redesign:
The 210-C acquires 99-inspired style.
"Slim-line" (horizontal) design, adopted wide "C" case/chassis
added input selector switch and "Record Compensator" (EQ) from
121 preamp
|
10 tubes:
(2) 12SL7
(1) 6J5
(2) 6SG7
(1) 6SQ7
(1) 6SN7GT
(2) 6L6GT
(1) 5V4GT
or
5U4GA (D-types) |
| 210-E |
/Amps,%20Integrated/Scott_210E%20tn.jpg) |
27-watts |
Mono Integrated
"DYNAURAL Laboratory" Amplifier |
1956-1957 |
$180 |
DYNAURAL Noise Supressor,
variable speaker damping control,
"Green-Dot" (default markings),
new ten-tube canted design, significantly upgraded EL34 power output
used wide "C" case/chassis
|
10 tubes:
(4) 12AX7
(2) 12AU7
(1) 6AL5
(2) EL34
(1) 5U4GA |
| 210F |
/Amps,%20Integrated/Scott_210F%20tn.jpg) |
32-watts |
Mono Integrated
"DYNAURAL Laboratory" Amplifier |
1957-1960 |
$190 |
DYNAURAL Noise Supressor,
repackaged using canted tube design
featured front panel speaker selector switch
up-rated power
used wide "C" case/chassis
|
9 tubes:
(3) 12AX7
(3) 12AU7
6AV6
(2) EL34
5U4GA
|
| 211-A |
|
??-watts |
Mono Integrated
"DYNAURAL Laboratory" Amplifier
(Triode Operation) |
1948-1951 |
Need
Price
Info
$250
(est) |
Similar to 210(A); but
with 6B4 Triode Outputs
(2) hard-wired inputs (phono and line-level)
distinctive HSH logo on cast transformer end-caps and knob centers
|
10 tubes:
(2) 12SL7
(1) 6J5
(2) 6SG7
(1) 6SQ7
(1) 6SN7GT
(2) 6B4
(1) 5V4GT |
| 212A |
Need
Photo |
18-watts |
Mono,
Remote Control "DYNAURAL"
complete amp in separate combo package |
1947-1950 |
$245 |
Consists of 121-A (DYNAURAL Noise Supressor
pre-amp)
and
220-A (power amp)
combination |
Type
121-A;
6 tubes:
6AL5
(2) 6BA6
(2) 12AX7
(1) 12AU7
Type 220-A;
5 tubes:
6SN7GT
6J5
(2) 6L6G
5V4G
|

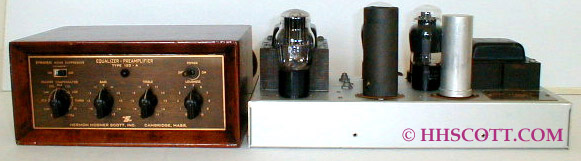

| 214-A |
/Amps,%20Integrated/Scott_214-A%20(120-A,%20220-A)_tn.JPG) |
18-watts |
Mono,
Remote Control
complete amp in combo package |
1948-1953 |
$190
total |
Consists of 120-A (pre-amp)
and 220-A (power amp)
combination |
Type
120-A;
3 tubes:
12AX7
(2) 12AU7
Type 220-A;
5 tubes:
6SN7GT
6J5
(2) 6L6G
5V4G
|
