| TYPE |
(Click for full-size) |
CONFIGURATION |
YEARS (APPROX.) |
COST NEW |
COMMENTS |
TUBES
(tech notes) |
| 200 |
/Amps,%20Integrated/Scott_200%20tn.jpg) |
Stereo
30-watt
Integrated
Amplifier
12-wpc (RMS) |
1962-1964 |
$140 |
An entry-level model
derived from the original 222(A/B) design.
Similar to LK-30 Kit
version, used cost-saving, 8-tube lineup which used a
single 6GW8 as a shared splitter/p-p output driver
used wide "C" case/chassis
|
8
tubes:
(3) 12AX7
(4) 6GW8 (Split-load phase inverter
and Output)
(1) 5AR4 |

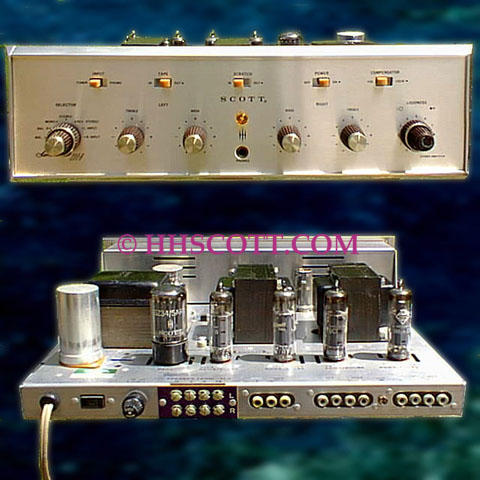

| 200B |
/Amps,%20Integrated/Scott_200B_Dual_View_tn.JPG) |
Stereo
30-watt
Integrated
Amplifier
12-wpc (RMS) |
1964-1966 |
$140 |
See above,
used wide
"C" case/chassis
|
8 tubes:
(3) 12AX7
(4) 6GW8
(Split-load phase inverter
and Output)
(1) 5AR4
|
| 222(A) |
/Amps,%20Integrated/Scott_222%20tn.jpg) |
Stereo
30-watt
Integrated
Amplifier
13-wpc (RMS) |
1959-1960 |
$150 |
Less-expensive,
less-powerful cousin to
299(A),
Self-biased design
dark brown
(plastic) knobs, used wide "C" case/chassis
|
11 tubes:
(4) 12AX7
(2) 6U8/6GH8 (floating paraphase inverter w/AC balance pots)
(4) 6BQ5
(1) 5AR4
|
| 222-B |
/Amps,%20Integrated/Scott_222B%20tn.jpg) |
Stereo
30-watt
Integrated
Amplifier
13-wpc (RMS) |
1960-1961 |
$150 |
See 222(A) above,
Self-biased design
added tape monitoring, DC balance and
common-channel adjustable bias pots,
introduced potted PEC's for EQ circuits
Metal (turned, Brass) knobs were optional @ $4.95,
used wide "C" case/chassis
|
11 tubes:
(4) 12AX7
(2) 6U8/6GH8 (floating paraphase inverter w/AC balance pots)
(4) 6BQ5
(1) 5AR4
|
| 222-C |
/Amps,%20Integrated/Scott_222C%20tn.jpg) |
Stereo
48-watt
Integrated
Amplifier
20-wpc (RMS) |
1961-1963 |
$165 |
See "Editor's Picks"
Replacement for earlier 299-B, as 299-C moves to 7591-design
Added Front-panel Headphone Jack
Brass knobs now standard
Redesigned output section, used wide "C" case/chassis
|
11 tubes:
(4) 12AX7
(2) 6U8 or 7199
(Split-load phase inverter)
(4) 7189
(1) 5AR4 |
| 222D |
/Amps,%20Integrated/Scott_222D_Front%20tn.jpg)
/Amps,%20Integrated/Scott_222D_Top%20tn.jpg) |
Stereo
48-watt
Integrated
Amplifier
20-wpc (RMS) |
1963-1964 |
$170 |
See "Editor's Picks"
Updated, Extruded front panel styling
Minor service-related improvements
used wide "C" case/chassis
|
11 tubes:
(4) 12AX7
(2) 6U8 or 7199
(Split-load phase inverter)
(4) 7189
(1) 5AR4
|
| 233 |
/Amps,%20Integrated/Scott_233_Front%20tn.jpg) |
Stereo
66-watt
Integrated
Amplifier
28-wpc (RMS) |
1964-1966 |
$190 |
Next to last Scott integrated
tube amp design, essentially a slightly down-rated, 299-C
Note: Some late versions of the 299-C are identical to the 233, except for
the front-panel
To save costs, Scott eliminated the 299-C's Phase Reversal, Rumble Filter
switches, and "Christmas Tree, tri-function indicators.
extruded
styling,
wide "C" case/chassis
|
11 tubes:
(4) 12AX7
(2) 6U8 or 7199
(Split-load phase inverter)
(4) 7591
(1) 5AR4
|
| 272 |
/Amps,%20Integrated/Scott_272%20tn.jpg) |
Stereo
88-watt
Integrated
Amplifier
with
"DYNAURAL" Rumble Supressor
37-wpc (RMS) |
1960-1962 |
$275 |
"DYNAURAL"
Rumble Supressor
Commonly seen with brown plastic knobs
Metal (shown) knobs were optional @ $4.95,
Variable center-channel, phono pickup, and
"Acoustic Level" controls
large
format
"G" case/chassis
(taller format to accommodate EL34's and huge TR-12-2 transformers)
42 lbs.
|
15 tubes:
(6) 12AX7
(1) 6AU6 (DNS)
(2) 6U8/6BL8
(floating
paraphase inverters w/AC balance pots)
(4) EL34/6CA7
twin rectifiers: (2) 5U4GB's
|
| 296 |
/Amps,%20Integrated/Scott_296%20tn.jpg)
/Amps,%20Integrated/Scott_296_Rear%20tn.jpg) |
Stereo
100-watt
Integrated
Amplifier
with
"DYNAURAL" Rumble Supressor
42-wpc (RMS)
|
1962-1963 |
$310 |
Scott's Most Powerful Integrated Amp
Replaced the 272
"DYNAURAL" Rumble Supressor
Only Scott design to use the 7581/KT66
large format
"G" case/chassis
|
15 tubes:
(6) 12AX7
(1) 6U8 (DNS)
(2) 6U8
(Split-load phase inverters)
(4)7581/KT66
twin rectifiers:
(2) 5AR4
|
| 299(A) |
/Amps,%20Integrated/Scott_299%20tn.jpg)
/Amps,%20Integrated/Scott_299%20(top)%20tn.jpg) |
Stereo
40-watt
Integrated
Amplifier
17-wpc (RMS) |
1958-1960 |
$200 |
Scott's first
"Stereomaster"
Integrated Amp
See "Editor's Picks"
"Christmas Tree" tri-function neon indicators, unique to
299-series
bias control common to both channels
wide "C"
case/chassis
|
11 tubes:
(4) 12AX7
(2) 6BL8 (floating paraphase inverter w/AC balance pots)
(4) 7189
(1) 5AR4 |
| 299-B |
/Amps,%20Integrated/Scott_299B%20tn.jpg) |
Stereo
50-watt
Integrated
Amplifier
21-wpc (RMS) |
1960-1961 |
$210 |
See "Editor's Picks"
Larger transformers,
changed phase splitters
Minor styling changes to knobs, indicators, logo/lettering,
double-H, logo, replaced oval logo.
used wide "C" case/chassis
|
11 tubes:
(4) 12AX7
(2) 6U8/6GH8 (floating paraphase inverter w/AC balance pots)
(4) 7189
(1) 5AR4 |
| 299-C |
/Amps,%20Integrated/Scott_299C%20tn.jpg) |
Stereo
72-watt
Integrated
Amplifier
31-wpc (RMS)
or
28-wpc (RMS)
smaller transformer versions |
1961-1964 |
$230 |
Major upgrade for 299-series adapted from the older LK-72 (kit) 7591-design
Added Front-panel Headphone
Jack,
More powerful final section
center channel volume control
some late "C" versions had 233 circuitry and smaller
TRA-8-5-4 transformers
|
11 tubes:
(4) 12AX7
(2) 6U8 or 7199
(Split-load phase inverter)
(4) 7591
(1) 5AR4
|
| 299D |
/Amps,%20Integrated/Scott_299D%20tn.jpg) |
Stereo
80-watt
Integrated
Amplifier
34-wpc (RMS) |
1964-1966 |
$235 |
See 299C above
See LK-72-B (kit)
S/N 249780 & up: used 233's output xformers:
TRA-8-5-4
Updated, Extruded front panel styling
Minor service-related improvements
used wide "C" case/chassis
|
11 tubes:
(4) 12AX7
(2) 6U8 or 7199
(Split-load phase inverter)
(4) 7591
(1) 5AR4
|
